511110-0007
KIM44 BAR WITH PROTECTION

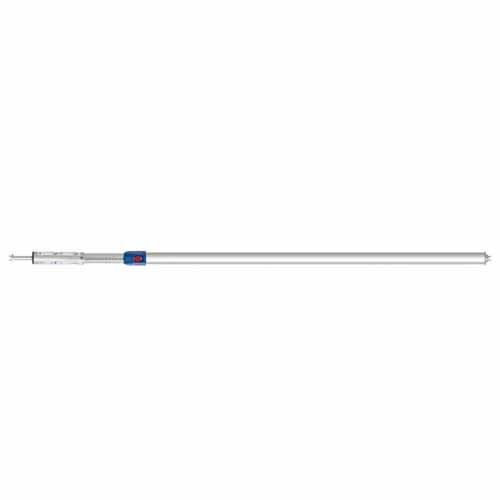

Telescopic rod KIM44 PROFI with protection
Description:
Telescopic rod KIM44 PROFI with protection. Wide range of length adjustment by quick manual adjustment. Unlocking by touching the red button. Spring pressure system. Bar for longitudinal or vertical locking on aeronautical and ladder rails.Width
Adjustment from 1,550 to 2,050 mm
Dimensions
Diameter Ø 42mm
Weight
3,10Kg
Material
Aluminum
Capacity
300daN locking. Locking capacity for evenly distributed load.
Terminal
Metal stop Ø19mm
Usage
Interior aeronautical rails and ladder rail.
