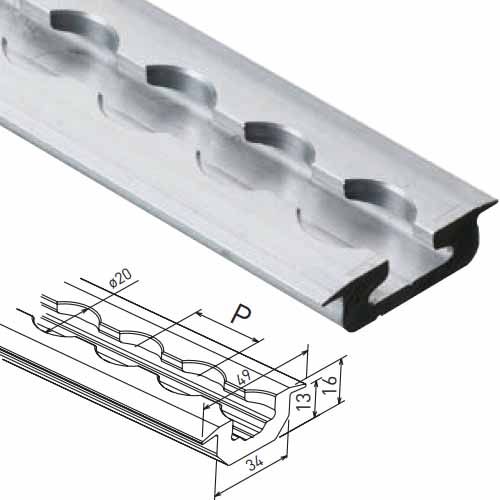

RECESSED RAIL 3.000 MM MACHINED
71223P-M127Ø8 71223P-M127Ø8

RECESSED RAIL 3.000 MM MACHINED

Aeronautical machined recessed rail.

Description:

Recessed aeronautical rail. For recessed installation inside the floor or on the side. Machined Ø8 every 127 MM

Long

49 mm

Material

Aluminum AL 6082

Width

3 M

High

16 mm

Dimensions

Hole spacing 25.4 mm.Hole Ø19 mm

Weight

2,965Kg

Features

Suitable for installation with screws and rivets.compatible with hardware, aeronautical fasteners, telescopic and clamping bars with Ø20mm stops.machined with Ø8mm countersunk hole every 127mm.

Usage

Aeronautical fastening.
