ISOLEX Insulation Covers

Isothermal insulation for the protection of goods traveling in containers. Maximum protection of sensitive cargo.

INSULATING SLEEVES FOR CONTAINERS

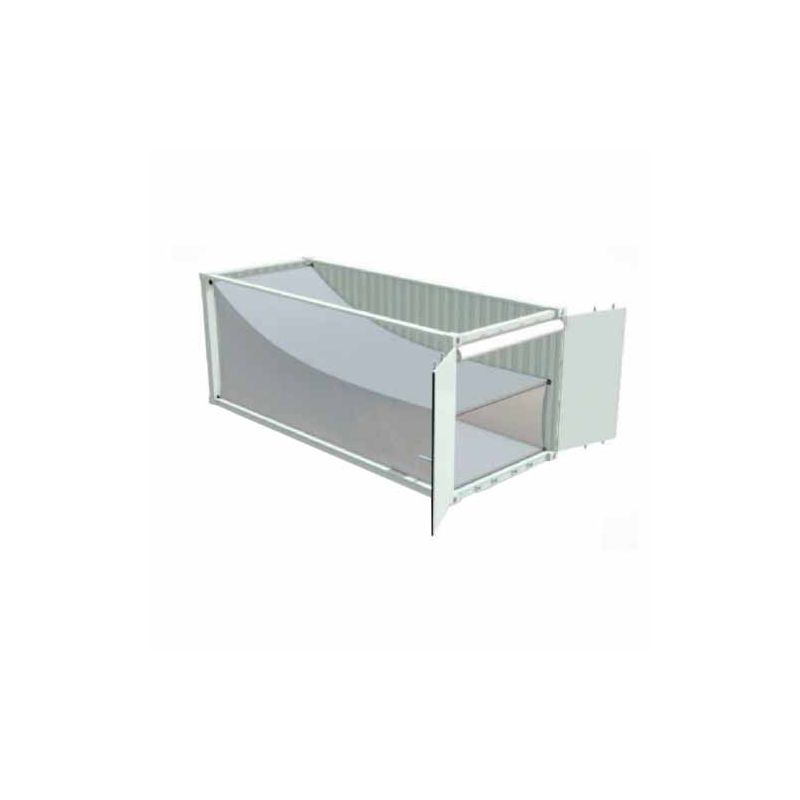

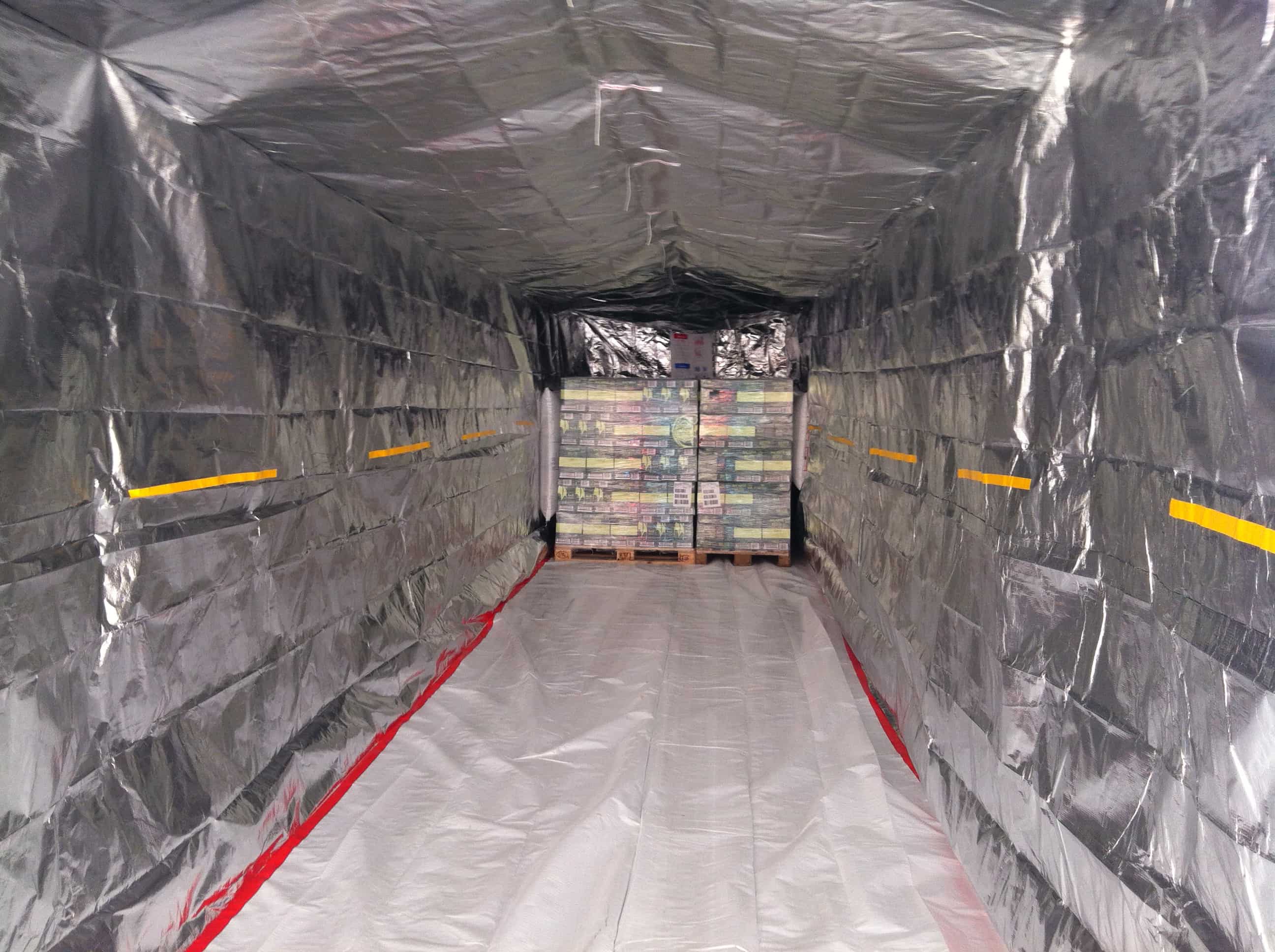

The ISOLEX isothermal insulation for containers is a system that protects the cargo during transport in 20', 40' and 40 BOX containers from sudden temperature changes and the effects of humidity. It is especially indicated to protect from temperature changes in those products and materials sensitive to these changes (wines, juices, cosmetic oils, chemical products, etc.).

Features

  • It can be installed by one person in less than 5 minutes.
  • The system has easily adjustable telescopic tubes for the base and upper parts of the container.
  • It is also equipped with magnets that simplify placement.
Technical Data

TYPE            20 FT 40 FT 40 FT HC
Long 5800 MM 12000 MM 12000 MM
Width 2310 MM 2310 MM 2310 MM
High 2580 MM 2580 MM 2580 MM
Roll width 2700 MM 2700 MM 2700 MM
High roll 400 MM 400 MM 400 MM
Extendable Fixing Bar    From 2300 to 2450 mm From 2300 to 2430 mm From 2600 to 2750 mm

The system is composed of an insulating liner with a flexible fiber closure. A base reinforced with polyethylene film that allows the use of forklifts for loading and unloading the container. Ø3.2 MM magnets (20' 6 units - 40' 12 units) and 3 extendable fixing bars.

Advantages

  • Insulating and flexible product.
  • Suitable for temperature changes.
  • Material composed of braiding/aluminum.
  • Easy to install and close.
  • Reflects 97% of heat.
  • Impermeable to humidity and condensation.
  • Reduces energy consumption/cost.
  • Easy to install.
  • Reduction of installer's time/costs.
  • Effective isolation.
  • Free of fibers (e.g. rock wool).
  • Very competitive price.
  • Maximum load capacity in containers.
  • Recyclable and environmentally friendly

Instructions


It is installed by one person in less than 5 minutes. The system has telescopic tubes for the base and upper parts of the container, easy to adjust.
It is also equipped with magnets that simplify placement.

INSTALLATION MODE

1. Deploy the ISOLEX inside the container.
2. Place the first extendable clamping bar in the lower rear retaining channel of the container.
3. Place the second extendable clamping bar at the top rear of the container and unfold the ISOLEX forward.
4. Place the third extendable clamping bar at the top front of the container.
5. Place the magnets to secure the sides of the container.
6. Close the door of the ISOLEX once the loading is completed with the flexible fiber fasteners.

Products

INSULATING SLEEVE CONTAINER

Part number: 11040HCFDB

INSULATING SLEEVE CONTAINER

Part number: 13020FDB

INSULATING SLEEVE CONTAINER

Part number: 13040FDB

INSULATING SLEEVE CONTAINER

Part number: 13040HCFDB
