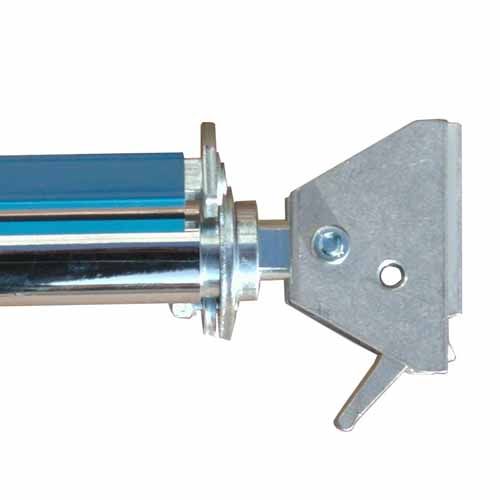

71488-10
BAR HANGING GARMENTS KTS
Hanging garment bar KTS system with terminals for use on aircraft rail.
Description:
Bar for transporting hanging garments with heads that slide along the aeronautical rail. The bar has an auxiliary bar that holds the hanger and prevents it from falling. Spring tension adjustment.Material
Chrome-plated steel
Capacity
Load 250 daN Uniformly distributed load capacity.
Width
2,410 to 2,520 mm adjustment
Dimensions
Tube Ø 35 mm
Weight
5,38Kg
Features
The KTS garment bars slide on the aeronautical surface rail positioned vertically. The bar locking is automatic and is overridden by lifting a lever integrated in the bar heads. By placing a stopper at the bottom of the vertically positioned aeronautical rails, the bars cannot be removed and are secured against theft. When the rails are not in use, they slide under the roof, leaving the entire interior of the van free. The rails are installed vertically. Normally the first rail is placed 30 cm from the beginning or end of the van and the successive rails every 60 cm.
Usage
On aeronautical rail, positioned vertically.
