SECU-FIX Suspended Mooring System

A fast, simple and safe solution for securing all types of loads on a truck by means of a system of suspended straps integrated into the vehicle itself.

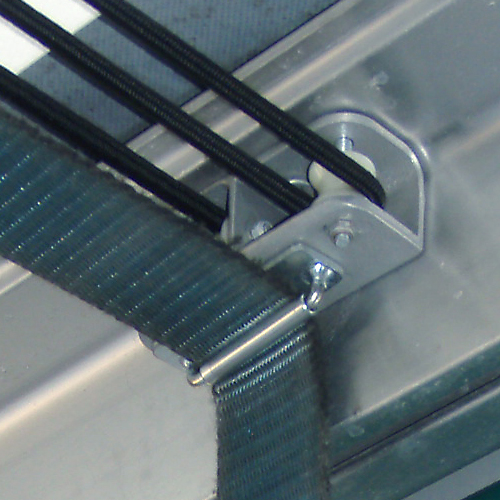

The system consists of 22 aluminum blocks with galvanized steel pins and nylon rollers, powerful magnets fixed with steel clips. And 22 high-strength and durable latex bungee cords with steel endings and metal rollers for easy sliding of the straps.

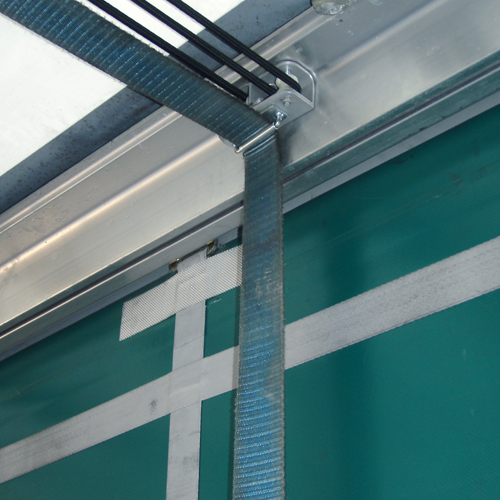

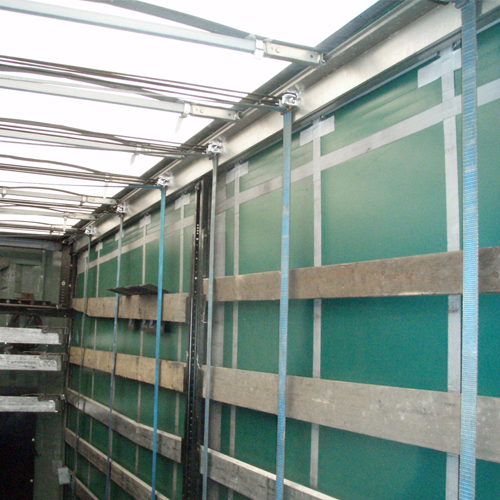

The system is installed on the side of the roof or on the sliding straps that support the tarpaulin.

The system allows loading and unloading from the rear or side of the truck. Depending on the vehicle, the system also allows loading from the top of the truck if installed on the sliding straps that support the tarpaulin.

It is recommended for use with 11 lanyards conforming to EN12195-2 with a width of 50mm.




Features

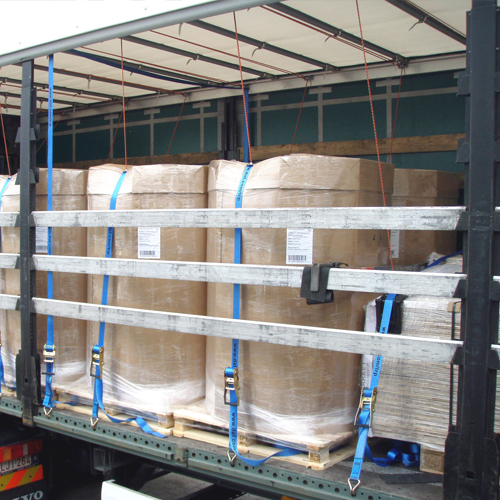

Once the platform is loaded, the only thing to do is to hook the hooks and tighten them, without having to position the lashing belts one by one.

The system components are manufactured with high quality materials, which will provide a long durability to the system.

Standard installation kits and customized kits are available depending on the length of each vehicle.


Advantages

Safety.
You will not have to climb the load again or throw the tapes over the load. This avoids the risk of accidents.

Fast and efficient.
The belts will always be tucked away and ready for use. After finishing, just unwind them and they will automatically return to their initial position. You will never have to rewind them again.

Easy to use.
Simply open the truck from the side, tighten the straps and secure the load.

Easy to install.
The system is fixed to the truck by means of screws allowing a quick installation.

Economy and savings.
The system saves you an average of 30 minutes per loading and unloading. You will never suffer tape loss or theft again.



Regulations

The system complies with EN12195-2 in conjunction with lanyard belts manufactured under the same standard.

Instructions

It should only be fixed with the aid of screws and the elastic bands should be passed through the system. It is recommended to install 11 sets of suspended straps to allow the entire load to be secured comfortably and securely.

Once installed, the operation is very simple. Tighten to lower the straps and secure the load, untighten to retract the straps. Once the belts are untensioned, they are retracted thanks to the elastics and are always fixed in place.

Products

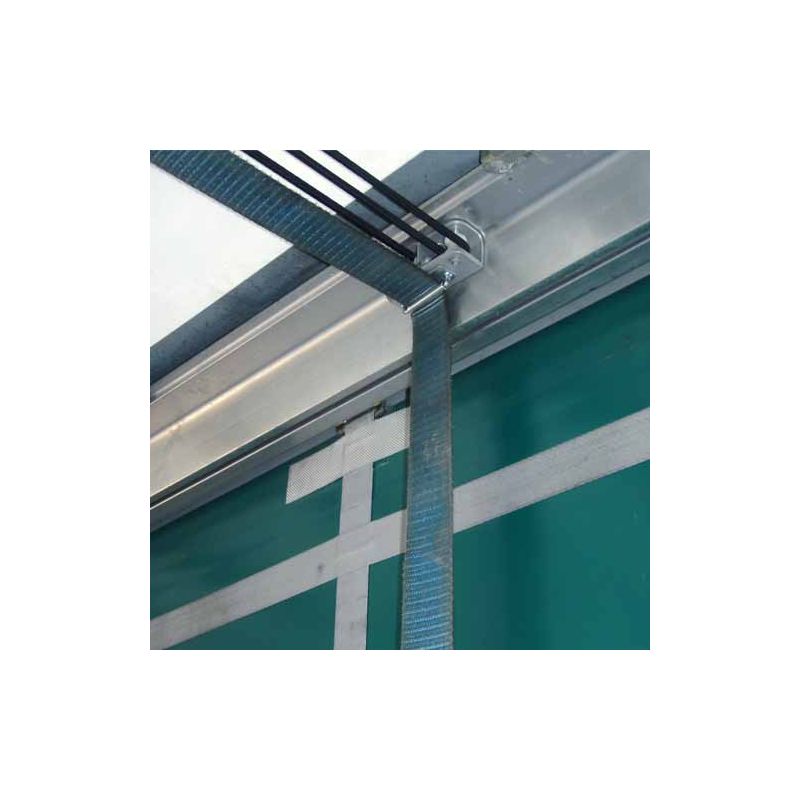

Tie-down system integrated to the tarpaulin truck roof.

Ordering Number: SPDII-N
