Double Sliding Tarpaulin Truck Floor

Maximum loading capacity of European pallets or bulky goods on vehicles with sliding tarpaulin structure.

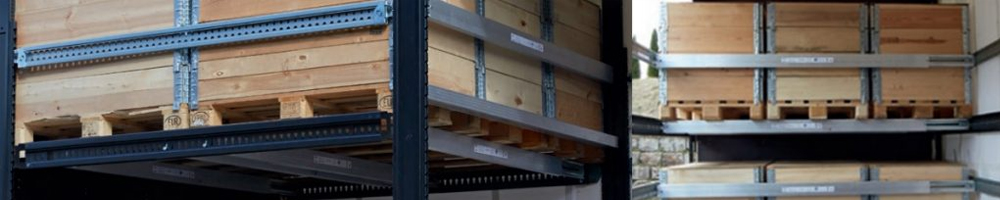

Double floor system designed for the transport of European pallets of cargo or bulky goods on vehicles with a sliding canvas structure for loading on two levels of height.

A lot of space is wasted during transport in sliding tarpaulin trucks. Most of the goods cannot be lifted and this means repeatedly driving well below the permissible payload and transporting only air.

With the CTD double-decker system, an additional load level is provided. If 33 Euro pallets are transported in a traditional transport, with the double-decker system the space is doubled and the load capacity of 33 becomes 66 pallets on a single truck.

Features

DOUBLES THE LOAD CAPACITY

  • Load capacity 66 euro pallets up to 1.50 m high and weighing 400 kg;
  • Load capacity on the second level is 13,200 kg.

Advantages

  • A second level of loading is created quickly and safely
  • Easy operation
  • Reduction of delivery times and transportation costs

Instructions

Contact our technical department for advice on number of bars, carton bar sizes, accessories and system optimization.
We will conduct a study to maximize performance tailored to your needs.

Products

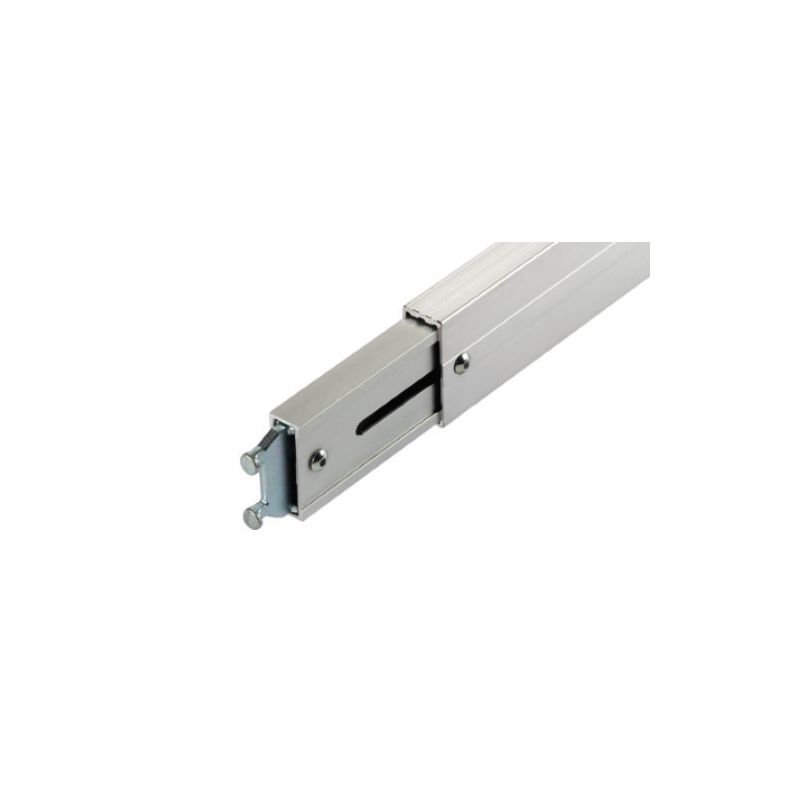

Double Floor Bar CTDIII Double Floor System CTDIII

Part number: 510800-10

Double floor system

Order No.: 511380-10

Double floor system

Order No.: 511380-11

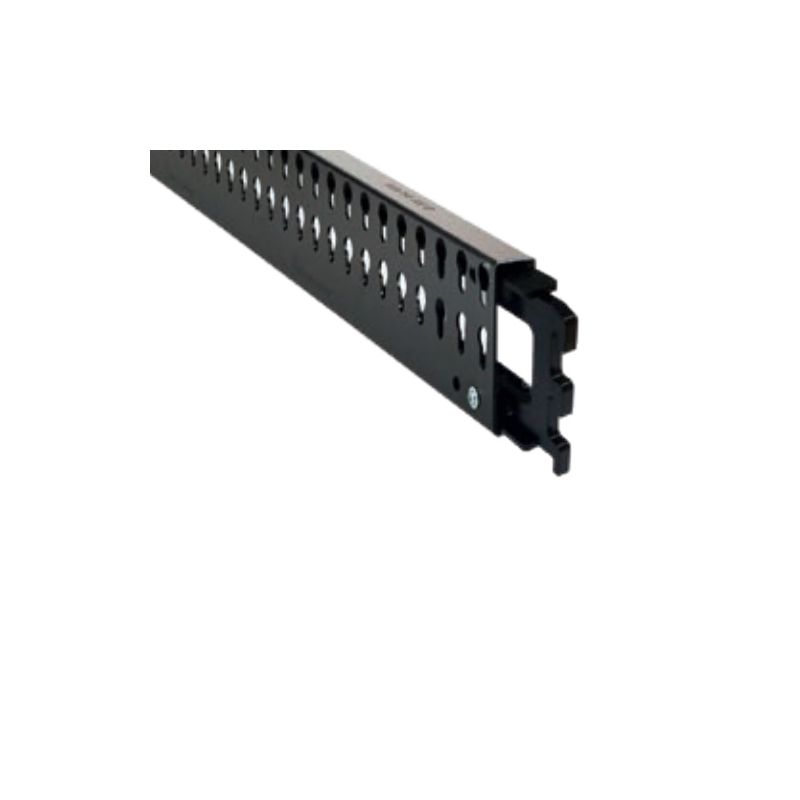

Double floor system

Order No.: 511380-12

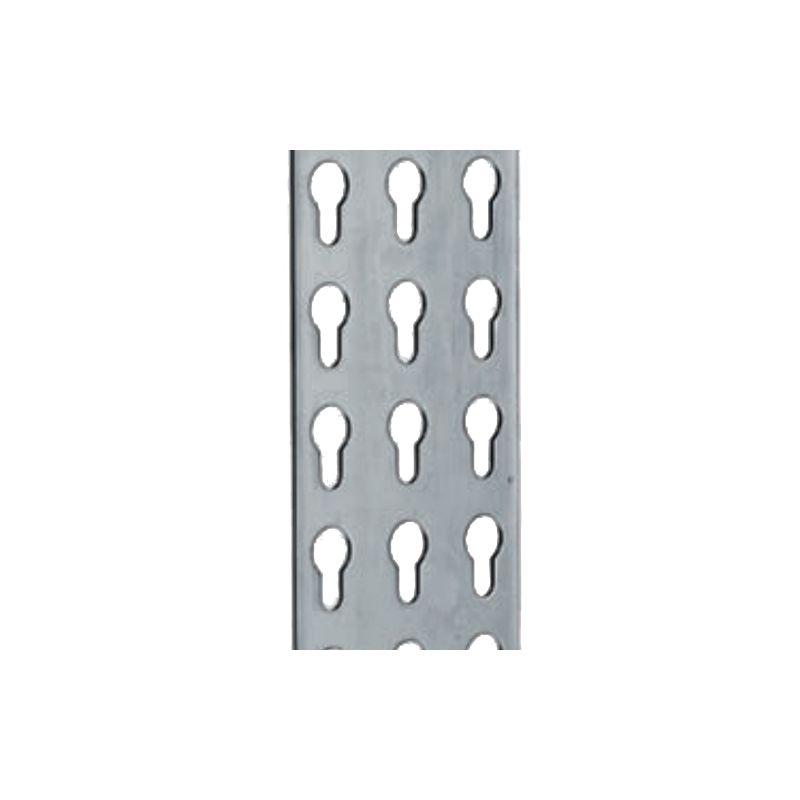

Vertical Keyhole Panel For Abutment CTDIII double floor system CTDIII

Part number: 520294-25

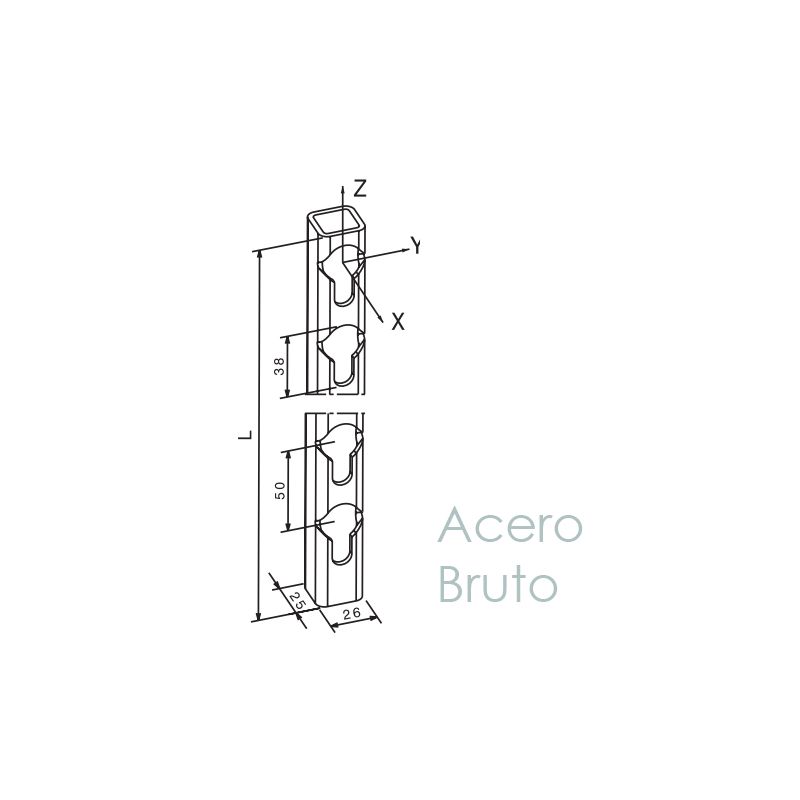

CTDIII side profile for abutment CTDIII double floor system CTDIII

Order No.: 521161-10

Lateral profile for CTDIII abutment CTDIII double floor system

Order No.: 521161-11
