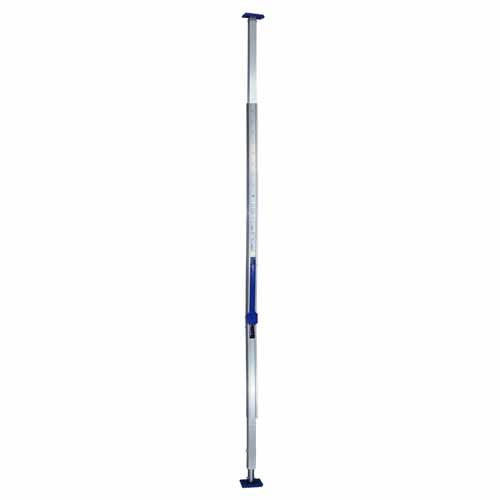

49111-10
ERGOBAR ALUMINUM TWO RUBBER BUMPERS
Standard ErgoBar with two rubber buffers.
Description:
ErgoBar with two rubber buffers. The bar facilitates the fastening and manipulation of the bar during the stowage, loading and unloading of goods.Width
Adjustment from 2,400 to 2,800 mm
Dimensions
Tubo 52 x 42 mm
Regulations
According to the calculations performed according to European standard EN 12195-1. In accordance with the European Directive 2014/47/EU as well as its transposition to the national legal system by Royal Decree RD 563/2017,
Weight
5,105Kg
Material
Aluminum
Capacity
Locking 150 daN Locking capacity for an evenly distributed load.
Terminal
2 high resistance rubber buffers.
Features
The ErgoBar is the evolution of conventional locking bars with rack and pinion tensioners. The bar offers the same locking capacity but with many advantages over other bars on the market.the ErgoBar is placed in contact with the goods to prevent the goods from moving in closed van or refrigerated trucks.the bar has an internal mechanism with eccentric tensioner at the waist height of the operator.the bar is easy to handle, allowing anyone to manipulate the bar without any danger and even without previous experience.its design makes it easy to handle the bar without any danger and even without previous experience.its design makes it easy to handle the bar without any danger. Easy to handle, it allows any person to manipulate the bar without any danger and even without previous experience.its design makes the bar keep by itself in vertical position with the handle open, allowing the use of the bar with one hand both horizontally and vertically.the bar is manufactured with square profile that offers a contact surface with the mateiral to block completely smooth and continuous.spare rubber buffers and handles are available for possible replacements or repairs. The replacement of the feet is done without exerting pressure on the lower spring, it is very light and can be adjusted in height by steel push button without the need to manipulate pins or moving parts that can be misplaced. It provides a greater locking capacity and its pressure in parking position allows to store bars in the same point of the truck without the risk of damaging the roof. 100% sustainable and recyclable product.
Usage
Load blocking.
