8,000-KL
RATCHET TENSIONER WITH CHAIN ADJUSTMENT CHAIN Ø8MM

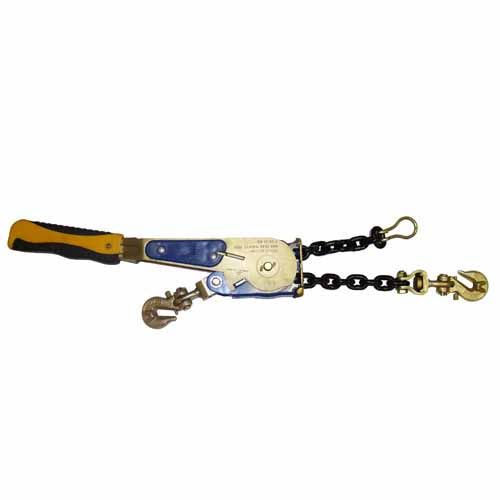

Ratchet tensioner with quick chain adjustment
Description:
Ratchet tensioner with quick chain adjustment. The Ø8mm chain passes through the double-crown ratchet shaft. The ratchet chain tensioner offers perfect adjustment.Material
High-strength forged steel, heat-treated.
Capacity
LC4000daN direct-draught working load. LC8000daN double-draught working load.
Terminal
Shortening hooks
Dimensions
Chain diameter Ø8mm
Regulations
EN12195-3
Weight
5,5Kg
Features
To prevent the chain from slipping out of the tensioner, it is supplied with a stop that prevents it from passing through the ratchet shaft. For safety reasons and according to standard, the hooks are supplied with a locking pin, and the handle of the tensioner is provided with an ergonomic protection, which allows a safer, faster and easier handling.
Usage
Exterior
