71084-AA
CARGO STA ALUMINUM TWO RUBBER BUFFERS Ø42MM

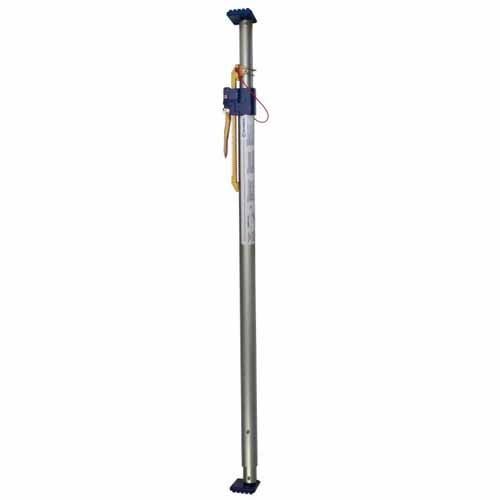

Cargo Sta locking bar in aluminum. Adjustable with pin change. With two rubber stops.
Description:
The bar is placed in contact with the goods to prevent shifting in closed vans or refrigerated trucks. It is adjustable in height by means of a steel pin. Tensioning and locking system is by means of a toothed lever with a steel rack.Material
Aluminum
Capacity
Locking 140 daN Locking capacity for an evenly distributed load.
Terminal
2 rubber feet
Width
Adjustment from 2,300 to 2,940 mm
Color
Blue Box
Dimensions
Tube Ø 42 mm
Regulations
Suitable for securing loads in road transport, according to the calculations performed according to European standard EN 12195-1. In accordance with the European Directive 2014/47/EU as well as its transposition to the national legal system by RD563/2017.
Weight
4,6Kg
Features
Barra ajustable en altura mediante cambio de tornillo en cremallera. Sistema de bloqueo de palanca con seguro. Regulable en altura mediante pasador ajustable en distintas posiciones. Alta calidad, fabricada en aluminio de Ø42mm. Ligera y robusta. Fácil utilización tanto en camión como en furgoneta, en vertical y en horizontal.No se recomienda almacenar en el camión más de 2 barras en el mismo punto para evitar deformar el techo por latensión que ejercen.
Usage
Van interior
