71174-AA

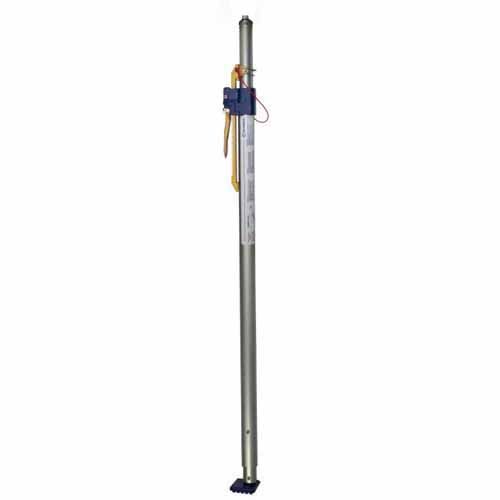

CARGO STA ALUMINUM RUBBER/METALLIC Ø42MM
Cargo Sta locking bar in aluminum. Adjustable with pin change. With one rubber stopper and one metal stopper.
Description:
The bar is placed in contact with the goods to prevent shifting in closed vans or refrigerated trucks. It is adjustable in height by means of a steel pin. Tensioning and locking system is by means of a toothed lever with a steel rack.Material
Aluminum
Capacity
Locking 140 daN Locking capacity for an evenly distributed load.
Terminal
1 metal stopper and 1 rubber foot
Width
Adjustment from 2,300 to 2,940 mm
Color
Blue Box
Dimensions
Tube Ø 42 mm
Regulations
Suitable for securing loads in road transport, according to the calculations performed in accordance with European standard EN 12195-1. In accordance with the European Directive 2014/47/EU as well as its transposition to the national legal system through the
Weight
4,6Kg (Approx)
Features
Height adjustable bar by means of screw change on rack and pinion. Lever locking system with safety lock. Adjustable in height by means of adjustable pin in different positions. High quality, made of aluminum Ø42mm. Light and robust. Easy to use both in trucks and vans, vertically and horizontally, it is not recommended to store in the truck more than 2 bars at the same point to avoid deforming the roof due to the tension they exert.
Usage
Van interior
